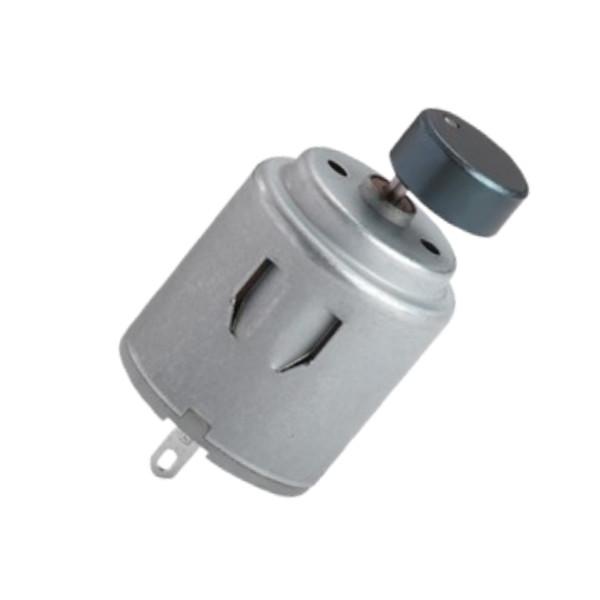

Round Shaft 260 Small Vibrating Motor 1.5V Mini DC Motor For RC Boat

  • 1
  • 2
  • 3

Brand Name : Lihua Motor/HCS Motors

Model Number : RC-260SA/RC-260RA

Certification : ISO9001, CE ,RoHs, Reach ,SGS

Place of Origin : Dongguan,China

MOQ : 2000PCS

Payment Terms : L/C,T/T

Supply Ability : 10000PCS/Day

Delivery Time : 30days-45days

Packaging Details : Foam Box

Model Type : RC-260SA-2670

Motor Shaft Diameter : 2mm

Commutator : Carbon Brushed

Motor Voltage : 1v-24v Can be Custom

Speed : 2000rpm-12300rpm

Torque : 12g.cm-90g.cm

Customized service : Voltage, Speed, Current, Torque, Shaft type, Wires and Connectors

Applications : Robotics projects, solar or battery powered cars, brush bots, fans and wind mills

Name : Small Vibration Motor

Contact Now

1.5V Motor Round Shaft 260 Motor Small Vibrating Motor Mini DC Motor For RC Boat

The 260 DC Mini Electric Motor is a compact, high-performance motor designed for a wide rang e of applications, from DIY projects to industrial tools. With a rated voltage of 1.5V–6V and a speed range of 5,000–20,000 RPM, this motor delivers reliable power and efficient performance in a small package. Its durable construction, easy installation, and affordable price make it a popular choice for hobbyists, engineers, and manufacturers alike.

Key Features


  1. Compact and Lightweight:

    • Dimensions: 24.2mm (D) × 26.9mm (L).

    • Weight: 28g, making it easy to integrate into space-constrained projects.

  2. High-Speed Performance:

    • Delivers speeds up to 20,000 RPM at 6V, ensuring smooth and efficient operation.

  3. Durable Construction:

    • Made with metal and electronic components, offering wear resistance, corrosion resistance, and long-lasting durability.

  4. Easy Installation:

    • Can add with 4-inch (10cm) black and red wire leads pre-soldered for easy connection to circuits.

    • Features a 2mm round shaft (6mm length) for secure coupling with gears and attachments.

  5. Wide Voltage Range:

    • Operates efficiently at 1.5V–6V DC, making it compatible with AA batteries, solar cells, or other low-voltage power sources.

  6. Low Noise Operation:

    • Engineered for quiet performance, making it suitable for noise-sensitive environments.

Technical Specifications


  • Motor Type: 260 DC Motor

  • Rated Voltage: 1.5V–6V DC.

  • Optimum Voltage: 3V–6V DC.

  • Speed:

    • 5,000 RPM at 1.5V.

    • 10,000 RPM at 6V.

  • Shaft Diameter: 2.0mm.

  • Shaft Length: 6mm.(Or can custom shaft length as you need)

  • Motor Body Diameter: 24mm.

  • Motor Body Length: 26.9mm.

  • Mounting Hole Pitch: About 11.5mm.

  • Mounting Hole Diameter: 2.3mm.

  • Idling Current: 0.11A.

  • Stall Current: 1.8A.

  • Weight: 28g.

24mm RC-260SA Round Brushed DC Electric Motor Dimension


Round Shaft 260 Small Vibrating Motor 1.5V Mini DC Motor For RC Boat

Notes:

Custom Service
1.Motor Direction of rotation can be design (CCW/CW)

2.Out shaft Length (L) can custom

3.Length / Materials of motor cables can be customized

4.Voltage ,Current, speed,torque ,power

5.Above RC-260 motor sheet is just reference,model name also can be change as your need.

24mm RC260 High Speed Small DC motor Datasheet


  • Rated Voltage: 1.0–24V (Can be custom)
  • RC-260SA Motor Size: 26.9×24.4mm(L*D)
  • Motor Leads/Wires Length: Can be design as your need
  • Brush Series:Long-life carbon brushed motor
Model Voltage No Load RATED LOAD Stall
Operating range Rated Speed Current Speed Current Torque Torque Current
V/DC RPM A RPM A g.cm g.cm A
RC-260SA-2670 1.5V-3.0V 3.0V 12300 0.20 10100 0.97 15 90 4.73
RC-260SA-18130 1.5V-4.5V 3.0V 6900 0.09 5000 0.37 9.5 48 1.4
RC-260RA-08560 9V-15V 12V 6200 0.03 4650 0.09 10.0 40 0.27
RC-260SA-12300 6V-15V 9V 6550 0.06 5110 0.22 19.7 90 0.79
RC-260RA-2295 3-4.5V 3V 9400 0.15 7610 0.64 13.3 70 2.7

  • Color Variation: Due to lighting and screen differences, the actual product color may slightly differ from the images.
  • Size Tolerance: Manual measurement may result in a 1–3cm variance in dimensions.
  • All technical paramter can be customized as your need.
  • Also av ailable with terminals (wi th out lea dwires).
  • Note:1mNm= 1Ncm = 10.2gcm

Why Choose the 260 DC Mini Electric Motor?


  • Affordable and Reliable: Offers high performance at an affordable price.

  • Versatile: Suitable for a wide range of applications, from toys to industrial tools.

  • Easy to Use: Pre-soldered wires and compact design simplify installation.

  • Durable Construction: Built to withstand continuous use in demanding environments.

Ideal for Hobbyists & Engineers – Whether for DIY projects, toys, automotive systems, or educational kits, the 260 DC Mini Electric Motor delivers unmatched performance and adaptability in a compact package.
