27.7mm RS-365 Small Electric Motors 12V Small High Torque Dc Motor For Device

27.7mm RS-365 Small Electric Motors 12V Small High Torque Dc Motor For Device

RS-365 Mini Motor Parameters

• Motor Type:RS-365SM Mini dc motor

• Voltage Range: 3V-36V (Can custom)

• Motor Brushes:Long life time Carbon Brushes

• Motor Slots:3 Slots Armature

• End Cover Materials: Metal End Cap

• No-load Speed:

  • 83,000 RPM (Rated Voltage :8V)


  • 5,000 RPM (Rated Voltage: 12V)

  • 25,500 RPM (Rated Voltage: 12V)

  • 20,000 RPM (Rated Voltage: 20V)

  • 21,000 RPM (Rated Voltage: 24V)
  • 30,000 RPM (Rated Voltage: 30V)

• Torque: Acceptable for customization based on application requirements.

• Direction of Rotation: Can be operated in either direction, simply reverse power supply polarity

• Bearings: Front and rear double ball bearings ensure stability and durability.

• Motor Body Length: Standard RS-365 motor body length is 27.7mm*32.6mm(L*H) or customizable according to specific design needs.

• Gross Weight:55g (Approx.)

• Typically Applications:Automatic Cruise Control/ Hand-Held Massager / Toy / Hair Dryer / Vacuum Cleaner/Pump

• Customizations Services: Shaft Length / Direction of Rotation / Technical Parameters / Cables and Connectors / Encoder and other accessories

27.7mm RS-365 DC Motor Datasheet /Specifications / Dimensions /Size

Model Number: RS-365 Small DC Electric Motors

|- Shell Stator Size : Φ27.7* L 32.3 mm(Φ 1.09 inch * 1.286 inch)
|- Shaft : Φ2.3mm(0.09 inch), D shape, etc.
|- Shaft length (L)free customization

|- Bearing Step Height:2.6mm
|- Bearing Step Diameter:10mm
|- Motor Terminal Dimension:W 0.5mm * L 6.5mm
|- Distance between terminals :23.4mm±0.2mm
|- Screw Holes Size:2.6mm*0.45
|- Distance between Screw Holes : 16mm±0.1mm

Above all paramters can be customzied or you can send your drawing to us to design your own motor solutions !

Click here to get your motor solution !

Mini Micro Motor Sample Production Process

Customization Support | Rapid Prototyping | Professional Evaluation

Lihua Motor supports custom micro DC motor development from 1V to 36V based on customer drawings or requirements. With rich experience and quick response, we offer flexible prototyping services tailored to different needs.

1. Submit Information

Customers provide motor usage requirements or drawings, including the following details:

• Voltage range, speed (RPM), torque

• Dimensions, shaft length

• Application scenario or special requirements

2. Technical Evaluation
After receiving the requirements, our R&D engineers will complete a preliminary evaluation within 1–2 working days and confirm feasibility. If there are any questions, we will contact the customer immediately.

3. Sample Confirmation
Once the evaluation is approved, we will confirm sample specifications, quantity, delivery method, and estimated lead time with the customer.

4. Sample Production Lead Time

• Standard products: Approx. 7–10 working days

• Special/customized materials: Lead time to be confirmed after further evaluation

5. Sample Delivery Options
Upon completion, we offer multiple delivery options:

• Express courier delivery

• Customer self-pickup

• Combine with other orders for shipment



★Kind Reminder:
If you have urgent development needs, please contact our customer service or sales representative to request expedited processing.

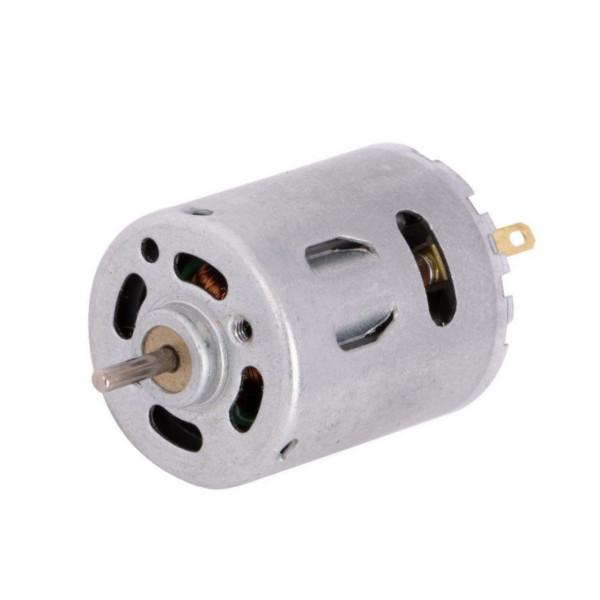

27.7mm RS-365 Small Electric Motors 12V Small High Torque Dc Motor For Device Images
