Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor

Guang Dong Lihua Mechatronics Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

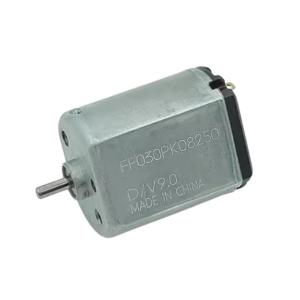

Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor

Brand Name : Lihua Motor /HCS Motors

Model Number : FF-030 Mini DC Motor

Certification : ISO9001/CE/Reach/RoHs/IATF16949

Place of Origin : Dongguan China

MOQ : 1700pcs

Price : Negotiation

Payment Terms : L/C,T/T,D/A,D/P,Western Union,MoneyGram

Supply Ability : 10000PCS/Day

Delivery Time : 30-45Days

Packaging Details : Carbon Box

Motor Model : FF-030

Motor Type : Precious metal brush motor

Rated Volt : 1V-12V

No-load Speed : 1000 rpm TO 15000rpm

Size : 18.6 * 15.5 * 12mm

Construction : Permanent Magnet

Application : Precision instruments, household appliances, blood pressure meter, etc.

Operating Temperature : -20℃ to +80℃

Contact Now

Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor


16mm Diameter FF-030 Motor Basic Technical Parameters


FF-030 12mm in diameter and 15.5mm in length, the FF-030 is incredibly small and lightweight, making it ideal for space-constrained applications.With a maximum speed of 10700 RPM, this motor delivers the power you need to drive your mini water pump efficiently.


Item

Precise metal brush motor

Motor Type

FF-030

Rated Volt

DC1.5V-12V

No-load Speed

1000RPM to 15000RPM

Output Shaft Length

15.0±0.5mm Or Customized

Direction of Rotation

CW/CCW

OEM & ODM

Accepted

MOQ

1700 units

Capacity

30,000 units/month

Package

Carton

Place of Origin

Dongguan, Guangdong, China

Delivery Date

Depending on the quantity, please ask the salesman.

Port of Shipment

Shenzhen / Hong Kong



Customized 16mm Diameter FF-030 Motor Variable Speed Parameter Types Table


Model

Voltage

No Load

At Maximum Efficiency

Stall

Operating Range

Nominal

Speed

Current

Speed

Current

Torque

Output

Torque

Current

r/min

A

r/min

A

mN-m

g-cm

w

mN-m

g-cm

A

FF-030PA-10180

DC 3.5-6.0V

DC 5.0V

11700

0.05

9230

0.19

0.5

5.1

0.48

2.35

24

0.7

FF-030PA-09180

DC1.0-5.0V

DC 5.0V

10500

0.046

8140

0.16

0.44

4.5

0.37

1.96

20

0.55

FF-030PK-08250

DC1.0-6.0V

DC 2.5V

4100

0.028

2940

0.071

0.21

2.1

0.064

0.74

7.6

0.18

DC 5.0V

10500

0.041

8020

0.13

0.43

4.4

0.36

1.81

19

0.43

FF-030-09210

DC 4.5-6.0V

DC 5.0V

10400

0.045

8000

0.15

0.42

4.3

0.35

1.81

19

0.5

*Note:

All above typical technical data for reference, special requirement can be customized.

1mNm= 1Ncm = 10.2gcm

Customized product models name are available upon request





Hobby Electric Motors 16mm Diameter FF-030 Motor Dimension


Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor

Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor



Standard Size Information for FF-030PK Mini Motor


FF-030 Body Size: 18.6*15.5*12mm (L*W*H) Output Shaft Length: L±0.5mm (Free Custom) Output Shaft Diameter: 1.5mm Screw Hole Size:2mm*0.4 Screw Hole Distance: 10.0±0.1mm Front Step Height:1.5mm Weight: 10 grams Unit:mm   Differences Between FF-030 ,FF-031 and FF-032 Mini Motor

DC Motor Type Volt

Standard Motor Size

(L*W*H)

Brush Type Direction Of Rotation Torque ODM/OEM Pciture Overview
FF-030PK/FF-030 1V-12V 18.6mm*15.5mm*12mm Precious Metal Brushed CW/CCW 19.3g.cm(3V) Accepted Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor
FF-031PK/FF-031 1V-12V

20mm*14mm*12mm

Precious Metal Brushed CW/CCW 21.0g.cm(3V) Accepted Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor
FF-032PKFF-032 1V-12V 18mm*14mm*12mm Precious Metal Brushed CW/CCW 15.5g.cm(3V) Accepted Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor


Some Customized 030 Mini Motor Types Solutions Display



At Lihua Motor, we specialize in providing tailored micro motor solutions to meet diverse application needs. This showcase features several customized 030 mini motor types, each developed based on specific customer requirements across industries such as smart home devices, personal care tools, and compact robotics. From enhanced torque output to ultra-low noise designs and extended service life, these motor variants demonstrate our R&D team’s ability to deliver high-performance, precision-engineered solutions. Whether for high-speed vibration, stable rotation, or miniaturized structural constraints, our customized 030 motors are built to exceed expectations and drive innovation.

Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor Custom 16mm Diameter FF-030 Motor 6000Rpm DC Motor Lightweight Micromotor
Electric Messager Vibrator brush 3V DC Mini Vibration Motor FF-030PK Hobby Electric Motors Low Speed 030 with Plastic Worm Shaft Metal Brush Motor DC 3V 5V 6V 8700RPM Mini 12mm*15mm Electric 030 Motor for AV Device/lock of car
